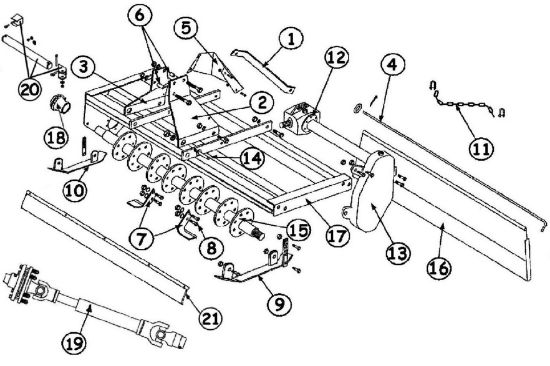

RTG-72 Parts Diagram

Exploded Parts

(1) 380108 LIFT ARM BRACE3/8 X 2 X 31 1/2

LIFT ARM BRACE3/8 X 2 X 31 1/2

$55.07

(2) 403068 LIFT ARM WELDMENT-LH

LIFT ARM WELDMENT-LH

$194.73

(3) 403069 LIFT ARM WELDMENT-RH

LIFT ARM WELDMENT-RH

$194.73

(4) 505014 TILLER TAILGATE ROD-72

TILLER TAILGATE ROD-72

$56.39

(5) 505025 TILLER LIFT ARM CENTER

TILLER LIFT ARM CENTER

$44.90

(6) 505030 TILLER LIFT ARM SPACER KIT

TILLER LIFT ARM SPACER KIT

$20.44

(7) 505054 TILLER TINE SET 72IN

TILLER TINE SET 72IN

$446.31

(8) 505108 TILLER TINE BOLT (108PCS)

TILLER TINE BOLT (108PCS)

$291.06

(9) 505050 TILLER SKID SHOE KIT LH

TILLER SKID SHOE KIT LH

$73.64

(10) 505057 TILLER SKID SHOE KIT RH

TILLER SKID SHOE KIT RH

$73.62

(11) 505143 TILLER CHAIN KIT

TILLER CHAIN KIT

$15.19

(12) 184071 RTA-50 900MM REVERSE

RTA-50 900MM REVERSE

$502.20

(13) 184069 GEARBOX TILLER RTS-50

GEARBOX TILLER RTS-50

$597.36

(14) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1

$13.83

(15) 404403 XB TILLER ROTOR

XB TILLER ROTOR

Call for pricing

(16) 402052 BACK PLATE ASSEMBLY 72"

BACK PLATE ASSEMBLY 72"

$256.31

(17) 402054 FRAME ASSEMBLY 72"

FRAME ASSEMBLY 72"

$921.10

(18) 184070 OUTBOARD HUB ASSEMBLY

OUTBOARD HUB ASSEMBLY

$157.59

(19) 147122 22" PTO /W SLIP CLUTCH

22" PTO /W SLIP CLUTCH

$289.12

(20) 505022 TILLER SUPPORT STAND PKG.

TILLER SUPPORT STAND PKG.

$32.56

(21) 505121 RUBBER FLAP PKG RTG-72

RUBBER FLAP PKG RTG-72

$55.30

RTG-72 Parts Diagram
