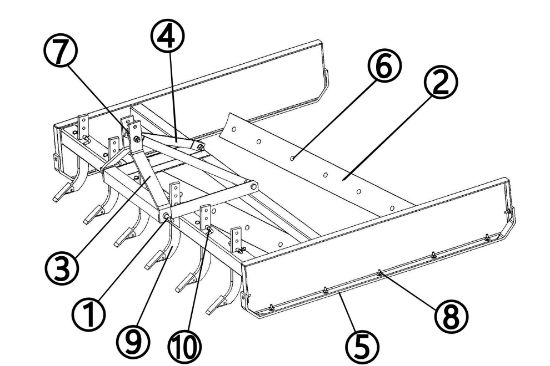

Picture of DEG-S-60 parts diagram

DEG-S-60 parts diagram

DEG-S-60 Parts Diagram

Exploded Parts

(1) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1
$13.83

(2) 188015 CUTTING EDGE 60" BB RB

CUTTING EDGE 60" BB RB
$125.89

(3) 360646 LIFT ARM 1/2 X 3 X 25 1/2

LIFT ARM 1/2 X 3 X 25 1/2
$48.55

(4) 360647 LIFT ARM BRACE 3/8 X 2 X 31 7/

LIFT ARM BRACE 3/8 X 2 X 31 7/
$42.29

(5) MISC (NotForSale)

MISC
$0.00

(6) 503001 REAR BLADE BOLT SET

REAR BLADE BOLT SET
$24.41

(7) 501080 QUICK HITCH BOXBLADE SPACER KI

QUICK HITCH BOXBLADE SPACER KI
$12.93

(8) 503008 DEG SKID SHOE BOLT SET(7 PK)

DEG SKID SHOE BOLT SET(7 PK)
$8.23

(9) 120001 RIPPER SHANK W/TEETH BB

RIPPER SHANK W/TEETH BB
$48.95

(10) 503501 BOX BLADE PIN /W HAIRPIN

BOX BLADE PIN /W HAIRPIN
$17.83

DEG-S-60 Parts Diagram
