20-24-CBF Parts Diagram

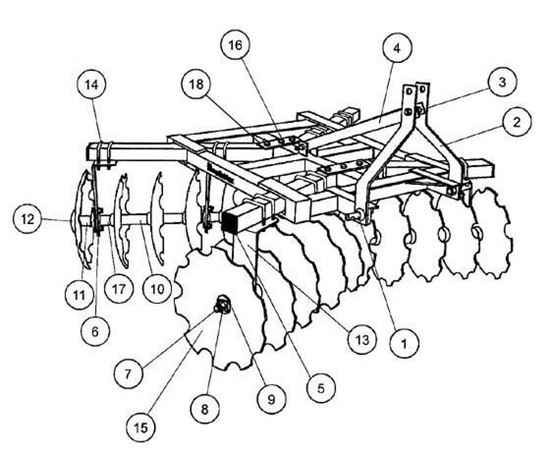

Exploded Parts

(1) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1

$13.83

(2) 330003 LIFT ARM 1/2"X3"X26"LG. BB &

LIFT ARM 1/2"X3"X26"LG. BB &

$49.36

(3) 501090 LIFT ARM SPACER KIT

LIFT ARM SPACER KIT

$15.68

(4) 324070 LIFT ARMS BRACE 3/8"X2"X33 3/4

LIFT ARMS BRACE 3/8"X2"X33 3/4

$49.25

(5) 124132 3" PLASTIC CAP BOX FRAME DISC

3" PLASTIC CAP BOX FRAME DISC

$7.44

(6) 504125 SEALED DISC BEARING ASSEMBLY

SEALED DISC BEARING ASSEMBLY

$33.25

(7) 178010 AXLES 1"X1"X41 3/4" 7 1/2 BFD

AXLES 1"X1"X41 3/4" 7 1/2 BFD

$85.02

(8) 504280 LOCKNUT 1" DISC (4-PK)

LOCKNUT 1" DISC

$20.53

(9) 129605 NUT WASHERS 3 1/2" CAST IRON B

NUT WASHERS 3 1/2" CAST IRON B

$8.63

(10) 129500 SPACERS (CAST IRON)LARGE DISC

SPACERS (CAST IRON)LARGE DISC

$19.10

(11) 129550 3 5/8" CAST IRON SPACERS BF DI

3 5/8" CAST IRON SPACERS BF DI

$13.16

(12) 129600 BUMP WASHERS 6 5/8" CAST IRON

BUMP WASHERS 6 5/8" CAST IRON

$21.16

(13) 324055 BEARING STAND PLATE 1/2"X5"X16

BEARING STAND PLATE 1/2"X5"X16

$56.30

(14) 504099 HANGER BOLT SET

HANGER BOLT SET

$28.11

(15) 189220 DISC BLADE NOTCHED 20"

DISC BLADE NOTCHED 20"

$45.81

(16) 404403 XB TILLER ROTOR

XB TILLER ROTOR

Call for pricing

(17) 129525 SPACER SPOOL 2 3/8

SPACER SPOOL 2 3/8

$11.17

(18) 324075 SLIDE ADJUSTMENT BAR W\HOLES 1

SLIDE ADJUSTMENT BAR W\HOLES 1

$42.71

20-24-CBF Parts Diagram
